应用

ISO 6743-4中除HFDR、HFD S和HFDT以外的，温度范围在-40℃～+100℃的液压流体；

温度范围在-40℃～+70℃的水性流体；

温度范围在0℃～+70℃范围内的水。

执行标准

胶管执行GB/T3683标准的SN/ATS型，符合DIN EN853 SN 型、ISO 1436 SN/ATS型，也符合SAE J517 100RIAT/IOOR2AT型标准要求。

外观

外表黑色，有光面(601)或布纹(601W)。

Application

Hydraulic fluid within -40℃～+100℃, except HFD R, HFD S and HFD T under |SO 6743-4;

Aqueous fluid within -40℃～+70℃;

Water within 0℃~+70℃;

Applicable Standards

Rubber hose according to standard GB/T 3683 SN/ATS, DIN EN853 SN,ISO 1436 SN/ATS and SAE

J517 100RIAT/IOOR2AT.

Appearance

Visually black, with polish 16011 or wove paltern(601W).

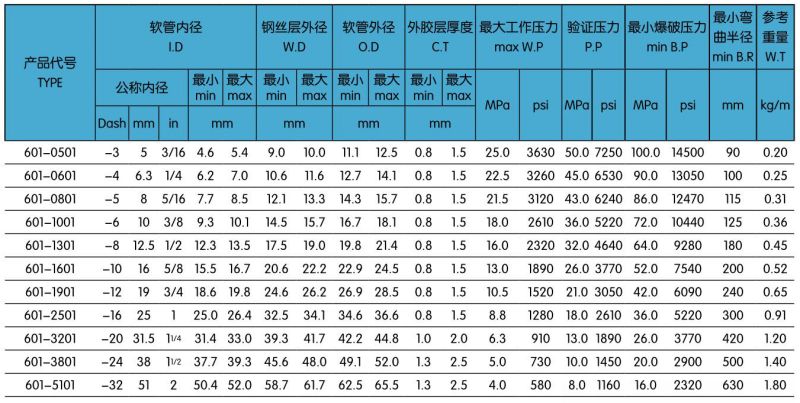

一层钢丝-结构特性

胶管由耐油的内胶层、一层钢丝编织增强层、耐天候性优良的外胶层组成。

Structural Characteristics

The rubber hose consists of oil-resistant inner layer, one layer of steel wire braided reinforcement, and weather resistant outer layer.

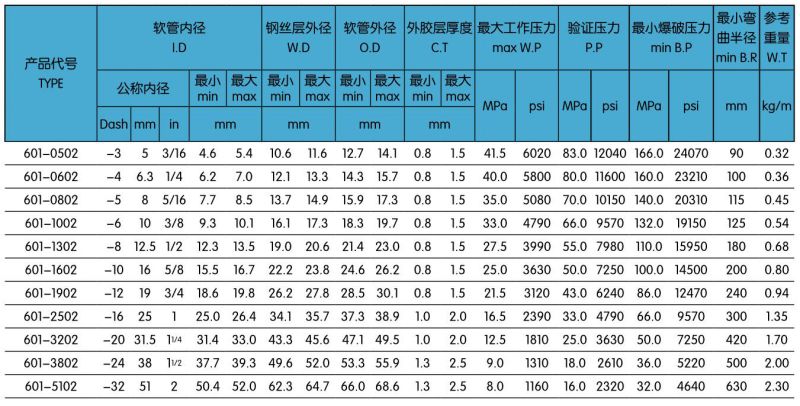

两层钢丝-结构特性

胶管由耐油的内胶层、二层钢丝编织增强层、耐天候的外胶层组成。

Structural Characteristics

The rubber hose consists of oll-resistant inner layer, two layers of steel wire braided reinforcement and weatherresistant outer layer.
